DIY Legs for Dragon Wagon & Pro Tables, 4-IN-1

These legs are designed for use with the Dragon Wagon series of tables (36x24) (54x30) (54x54) sizes. (Also fit the DIY Series of tables.)

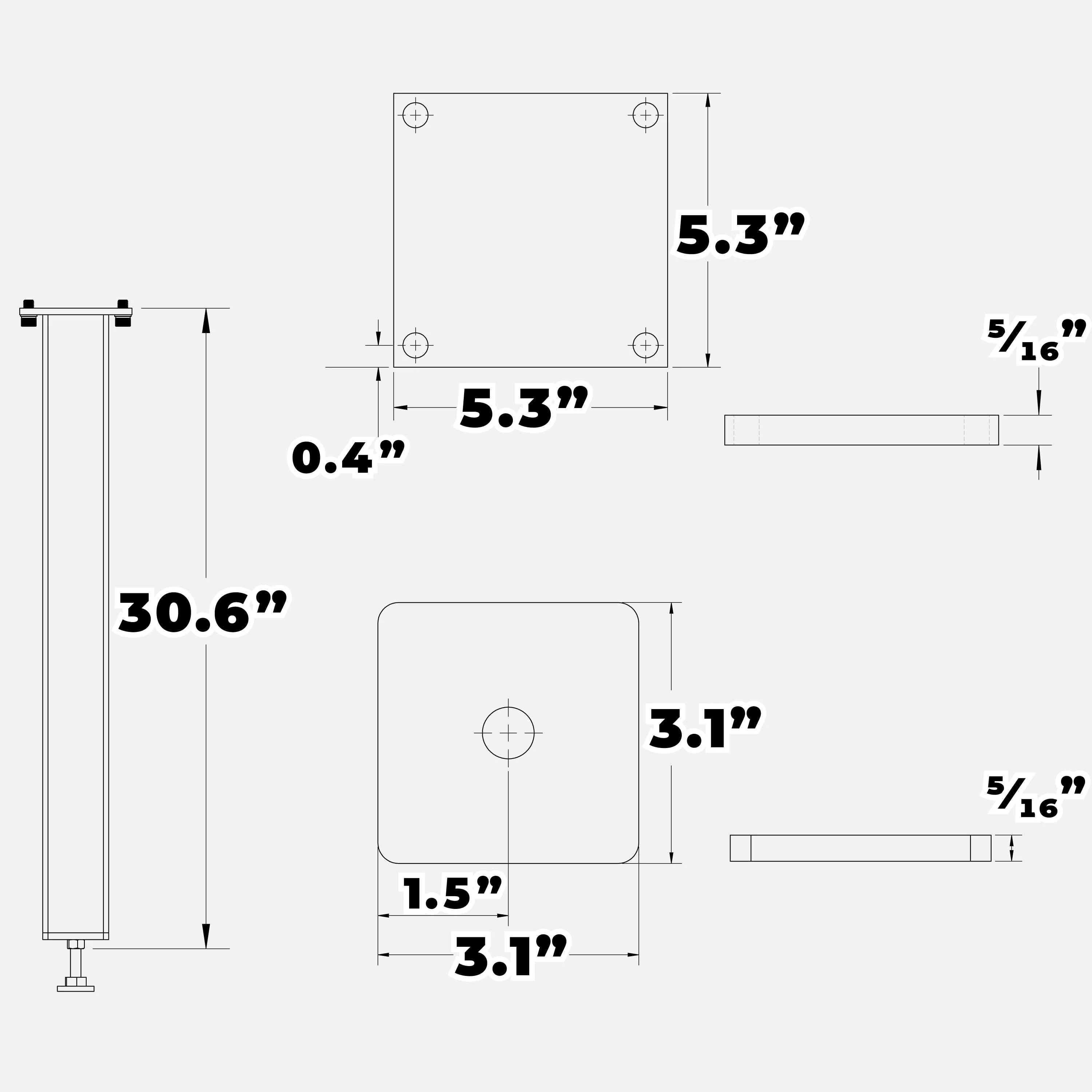

Total finished length when welded and assembled with leveling feet is 31 inches with +2" of adjustment (31-33").

Unfinished and requires welding. Set of 4 legs, with fasteners for mounting to Dragon Wagon series tables.

Tube length= 29.5" (3/16 wall thickness)

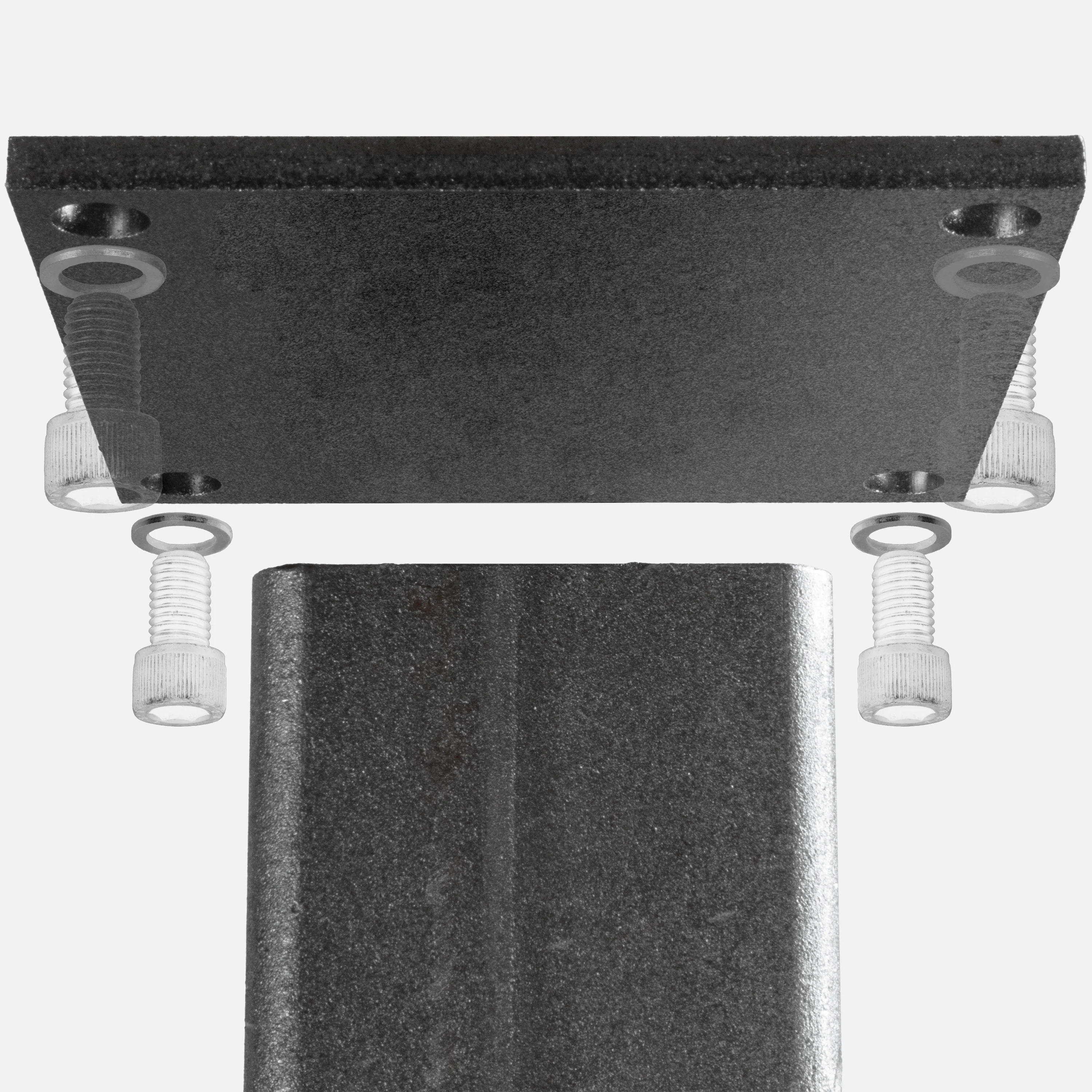

Top Plate = 5/16" thick

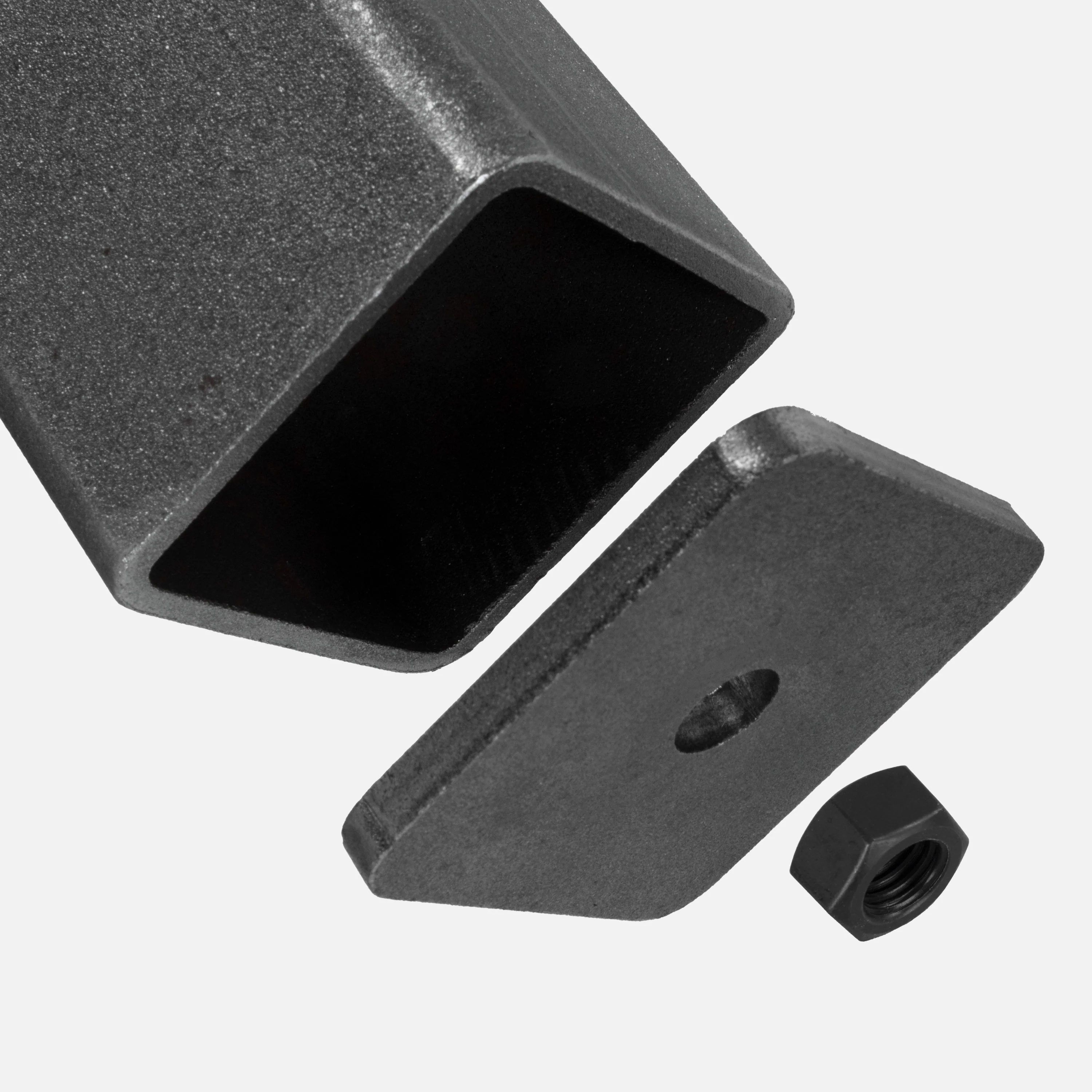

Bottom Plate- 5/16" thick

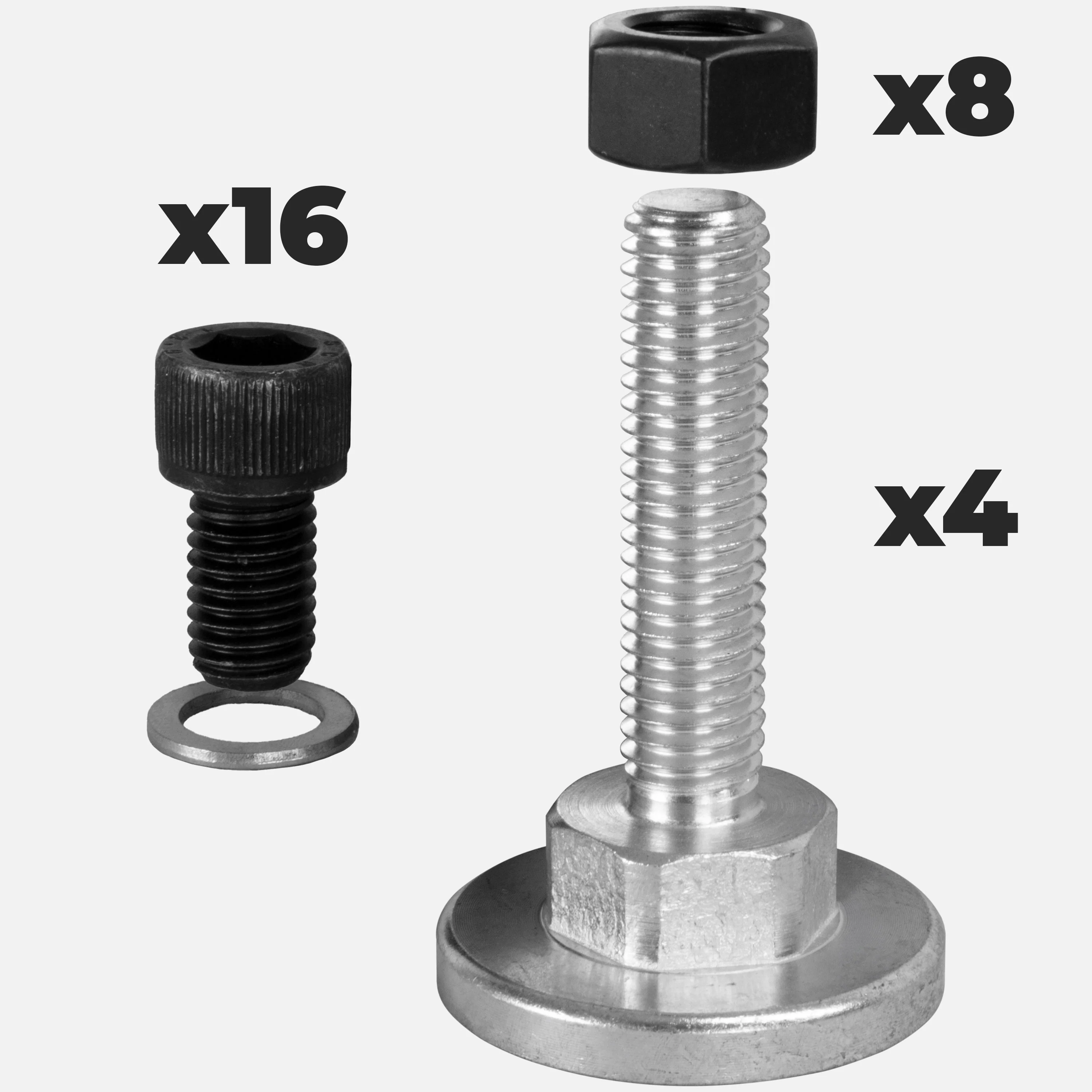

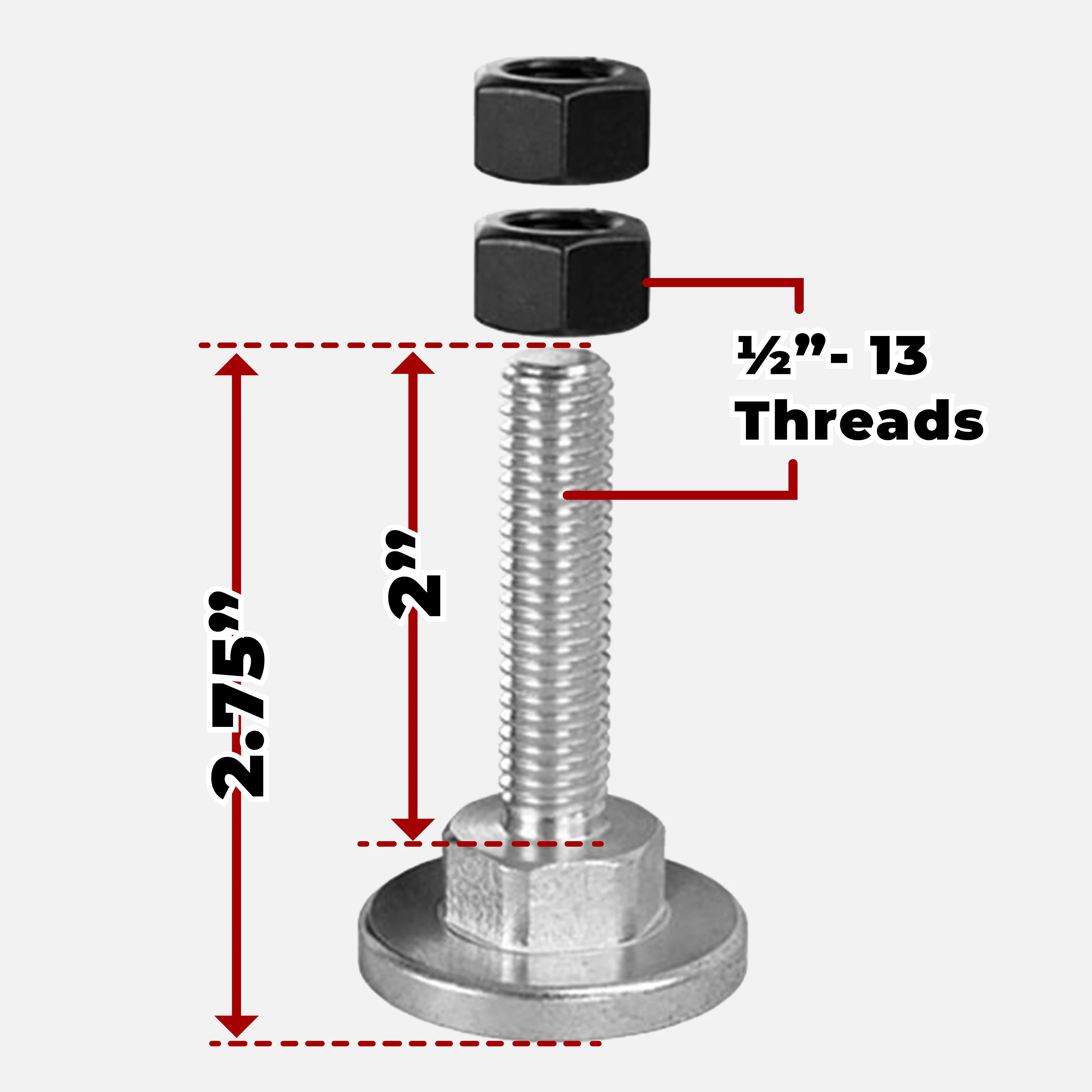

Leveling Pad= 2" thread length (1/2-13 threads), 2.75" total length.

Nuts= 1/2-13 threads

Fasteners for mounting to table= M12 x 1.75 (30mm thread length)
