24" x 12" Fixture Plate - 5/8" System

This plate can be used as a standalone work surface when retrofitted to a grinder or drill press, or used in multiples to create a welding table.  Each plate is over 3/4” thick with reinforced ribbing.

Made from gray cast iron.

The holes are spaced 2” apart, diameter of 5/8 to fit BuildPro tooling.

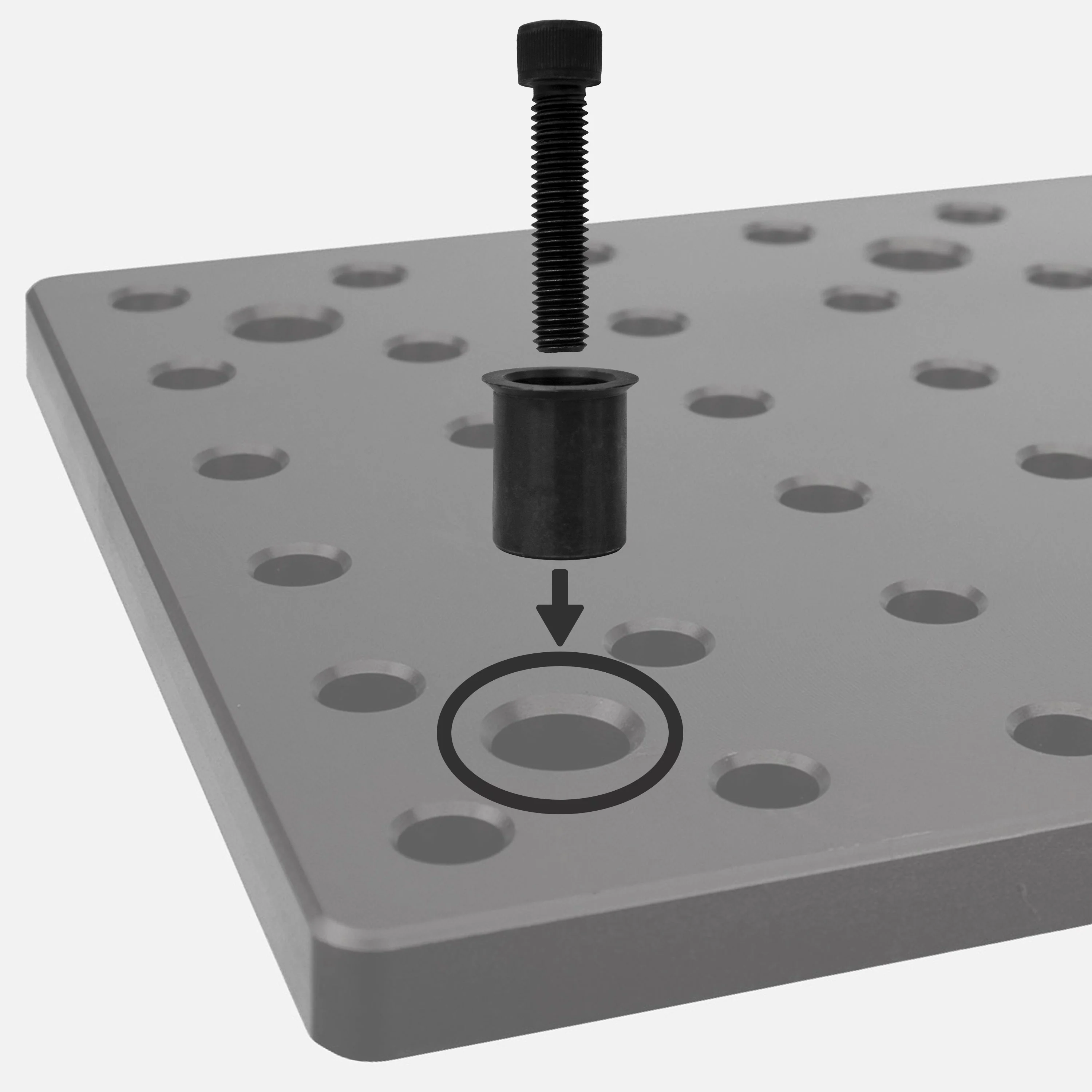

The mounting holes are fitted with non-locating bushings to create the mounting surface:

• Suggested for situations where the plate does not need to be removed often, or does not need to be replaced with great precision to its previous spot.
• Counterbores need to be drilled in the bearing surface with a hole to hole distance varying by no more than +/- 0.002” with no accumulation error.

• Made of Grey Cast Iron

• 3/4" Thick Plate with Ribbing Reinforcements

• .625" Diameter Holes on a 2" Grid Pattern, compatible with any 5/8" System such as our FA625 or BuildPro

• Comes with Mounting Bushings and Screws to fit onto desired location
